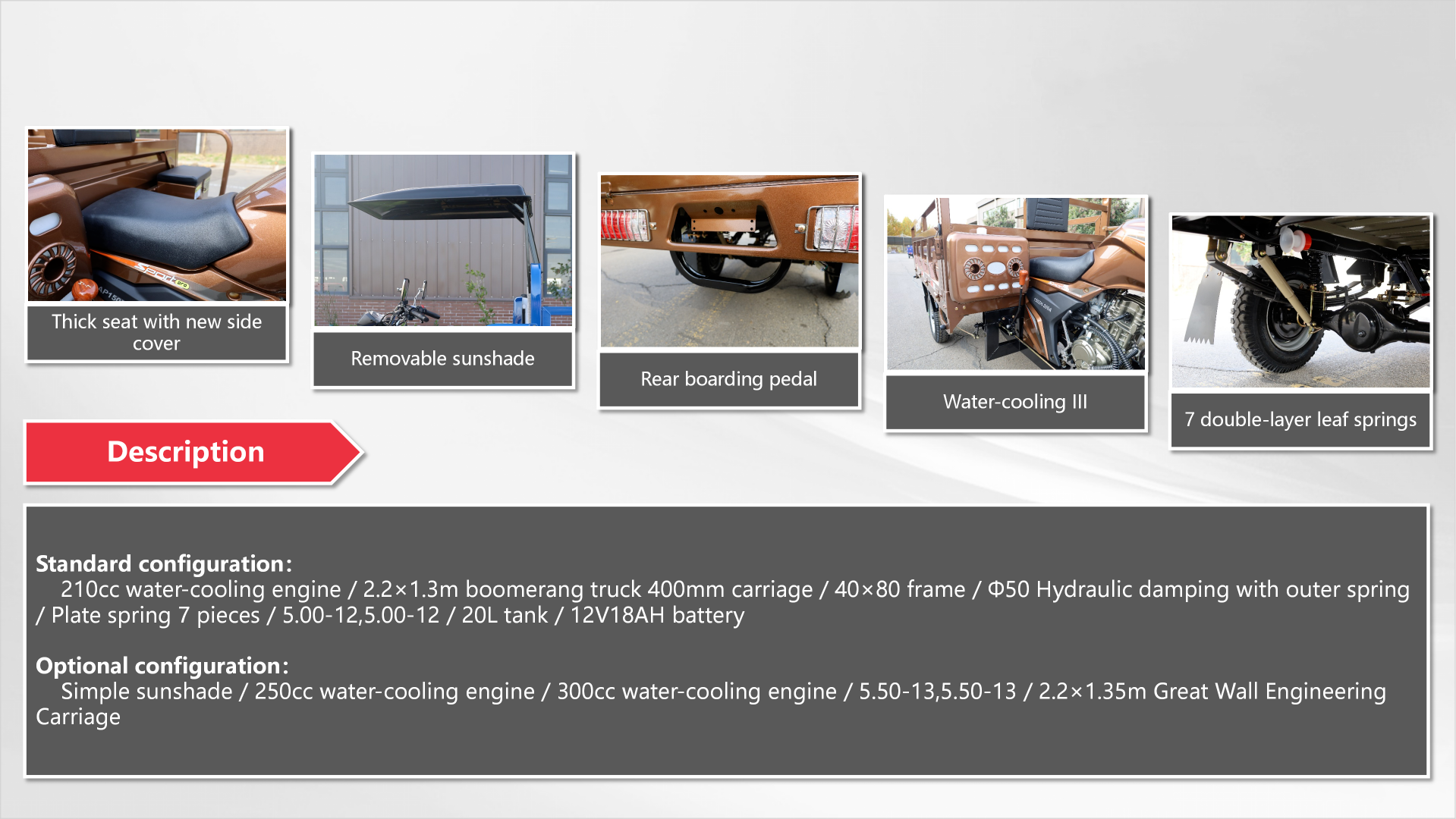

Standard configuration： 210cc water-cooling engine / 2.2×1.3m boomerang truck 400mm carriage / 40×80 frame / Φ50 Hydraulic damping with outer spring / Plate spring 7 pieces / 5.00-12,5.00-12 / 20L tank / 12V18AH battery Optional configuration： Simple sunshade / 250cc water-cooling engine / 300cc water-cooling engine / 5.50-13,5.50-13 / 2.2×1.35m Great Wall Engineering Carriage
Product Description

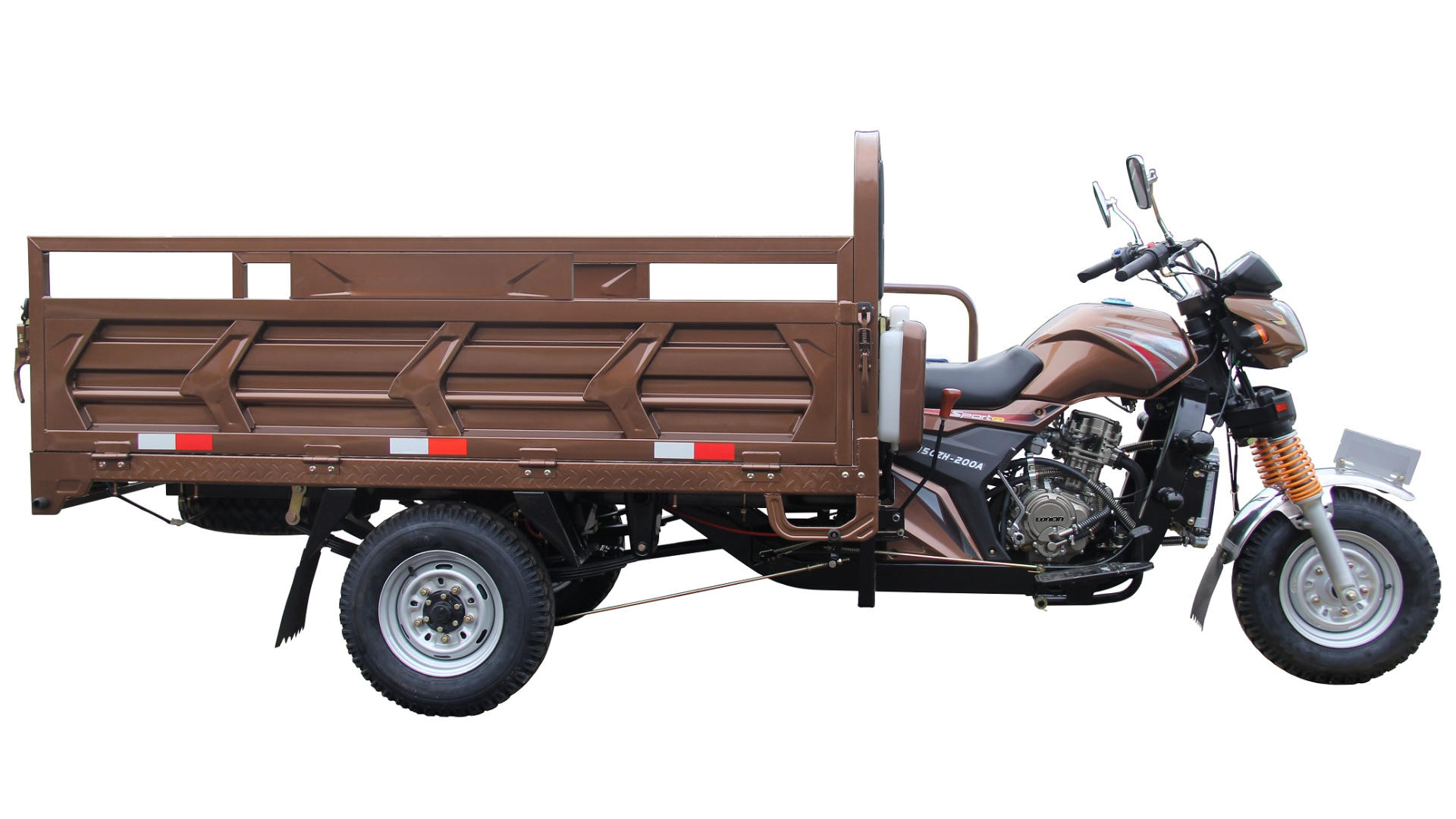

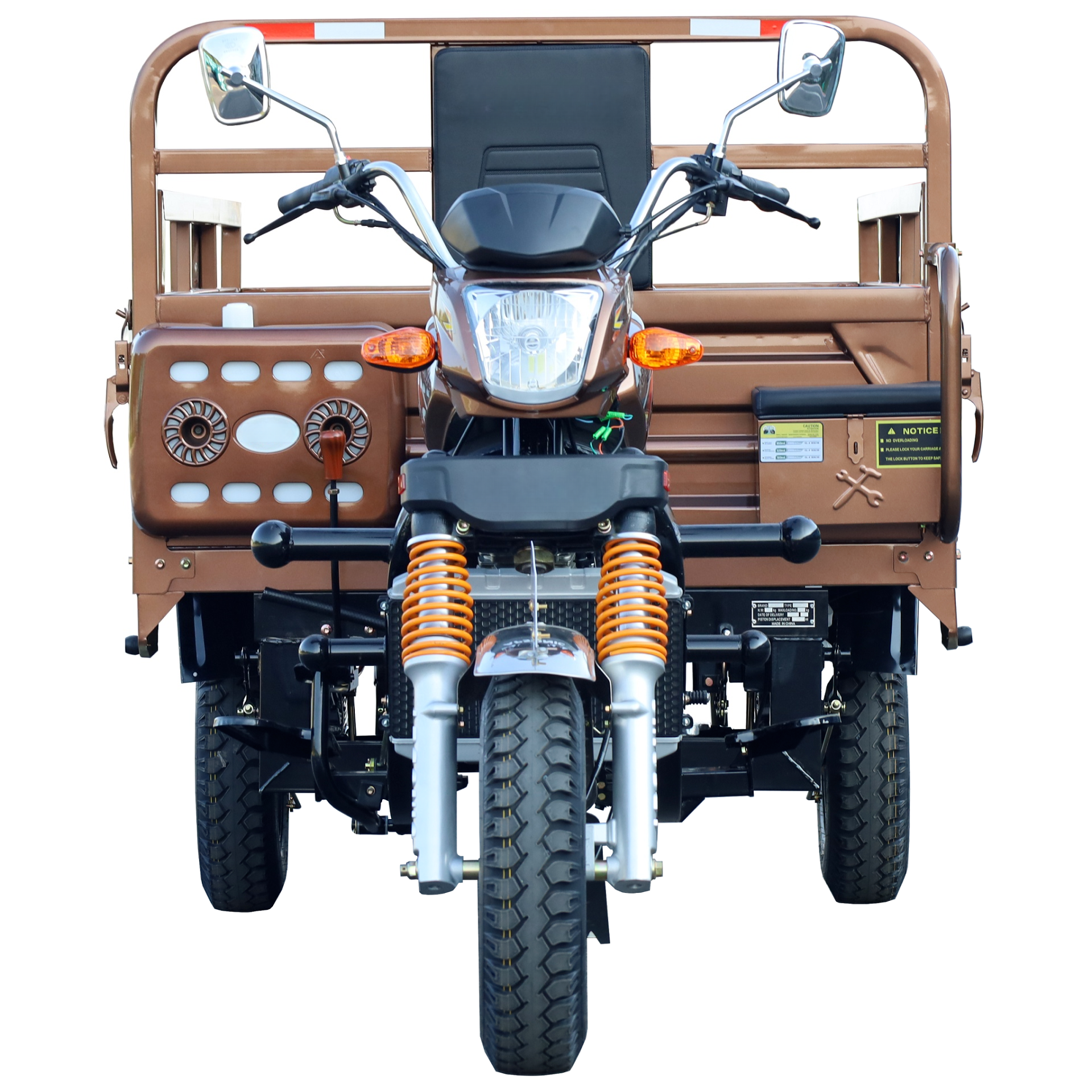

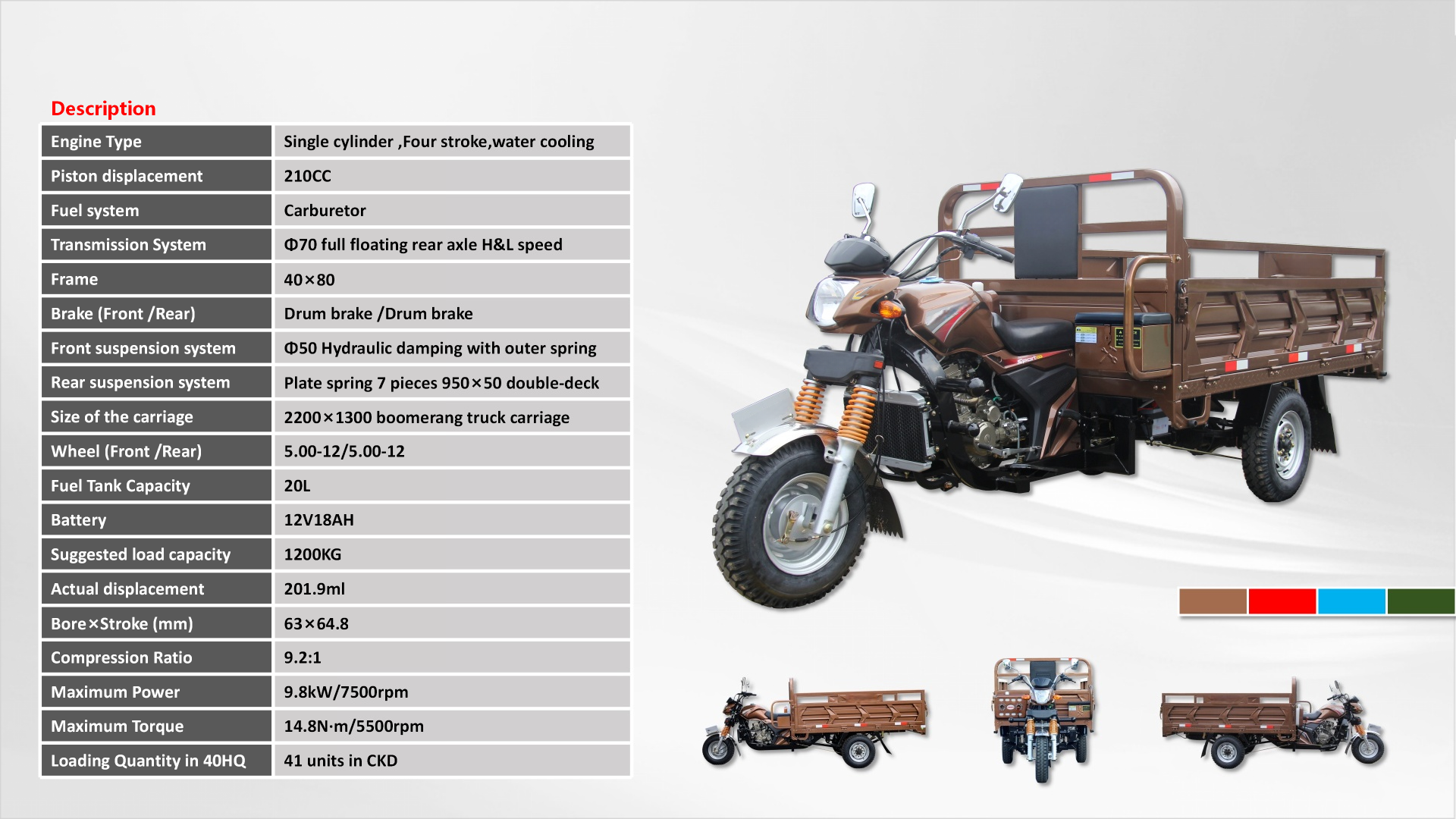

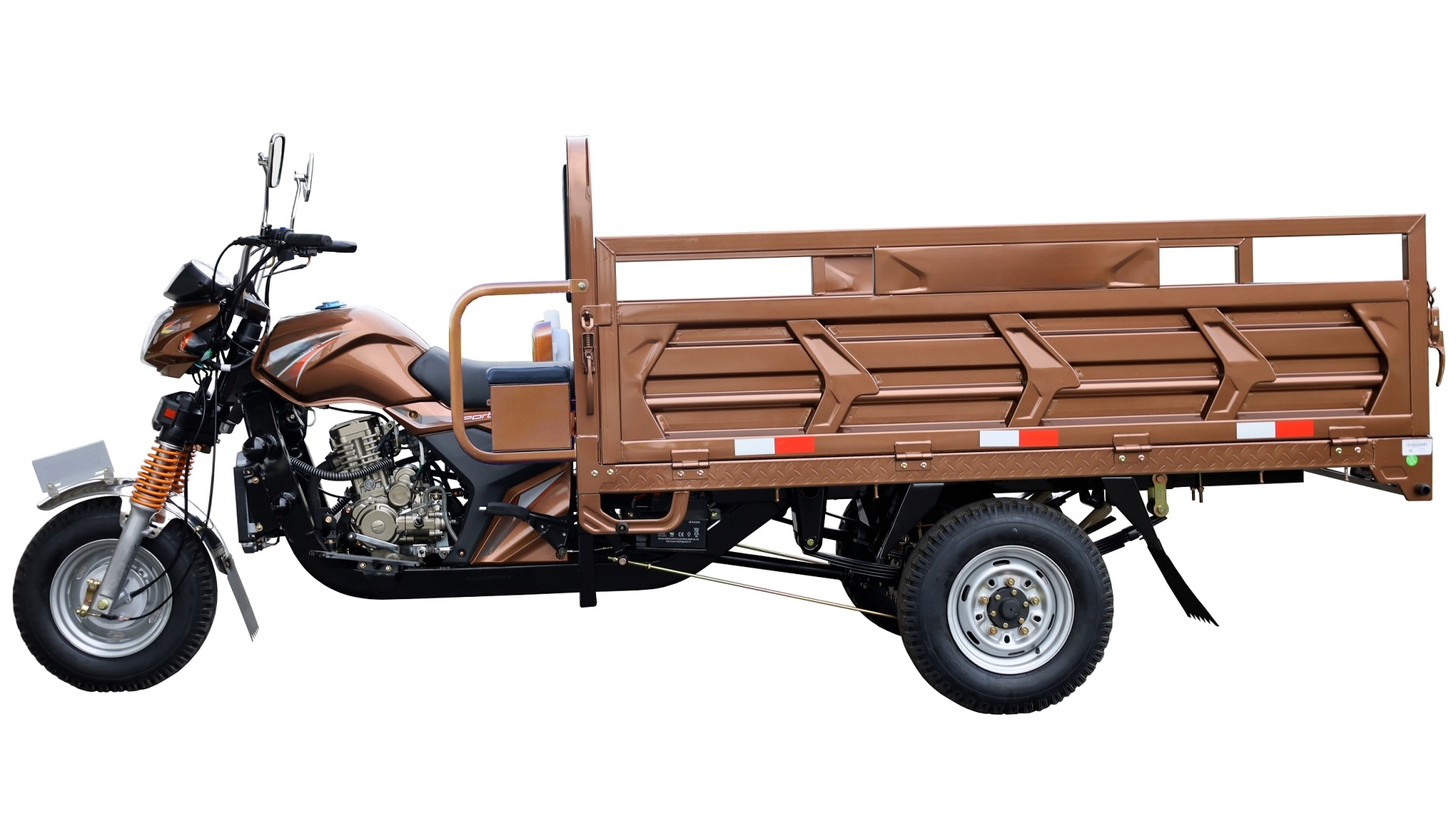

Motor Tricycle: PM200ZH-R3
Powerful Water-Cooled Engine: 210CC (optional 250CC/300CC) 4-stroke water-cooled engine, 9.8kW max power, full floating rear axle for heavy hauling.
Ultra-High Load Capacity: 1200KG rated load, 2200×1300mm large boomerang carriage for maximum cargo space.
Durable Structure: 40×80 heavy frame, Φ50 hydraulic front damping + 7-piece double-deck leaf springs for stable heavy-load riding.
User-Friendly Design: 20L large fuel tank, thick seat, rear boarding pedal, optional removable sunshade for comfort.
Safe & Reliable: Front/rear drum brakes, 5.00-12 heavy-duty tires for stable performance on various roads.
Export-Friendly: 41 units CKD per 40HQ container for cost-effective bulk shipping.
