Standard configuration： 175cc air-cooling engine / 1.8×1.3m boomerang truck carriage / 40×80 frame / Φ50 Hydraulic damping with outer spring / Plate spring 5 pieces / 5.00-12,5.00-12 / 25L tank / 12V9AH battery Optional configuration： Plate spring 6 pieces / Simple sunshade / Simple front shed / 210cc air-cooling engine
Product Description

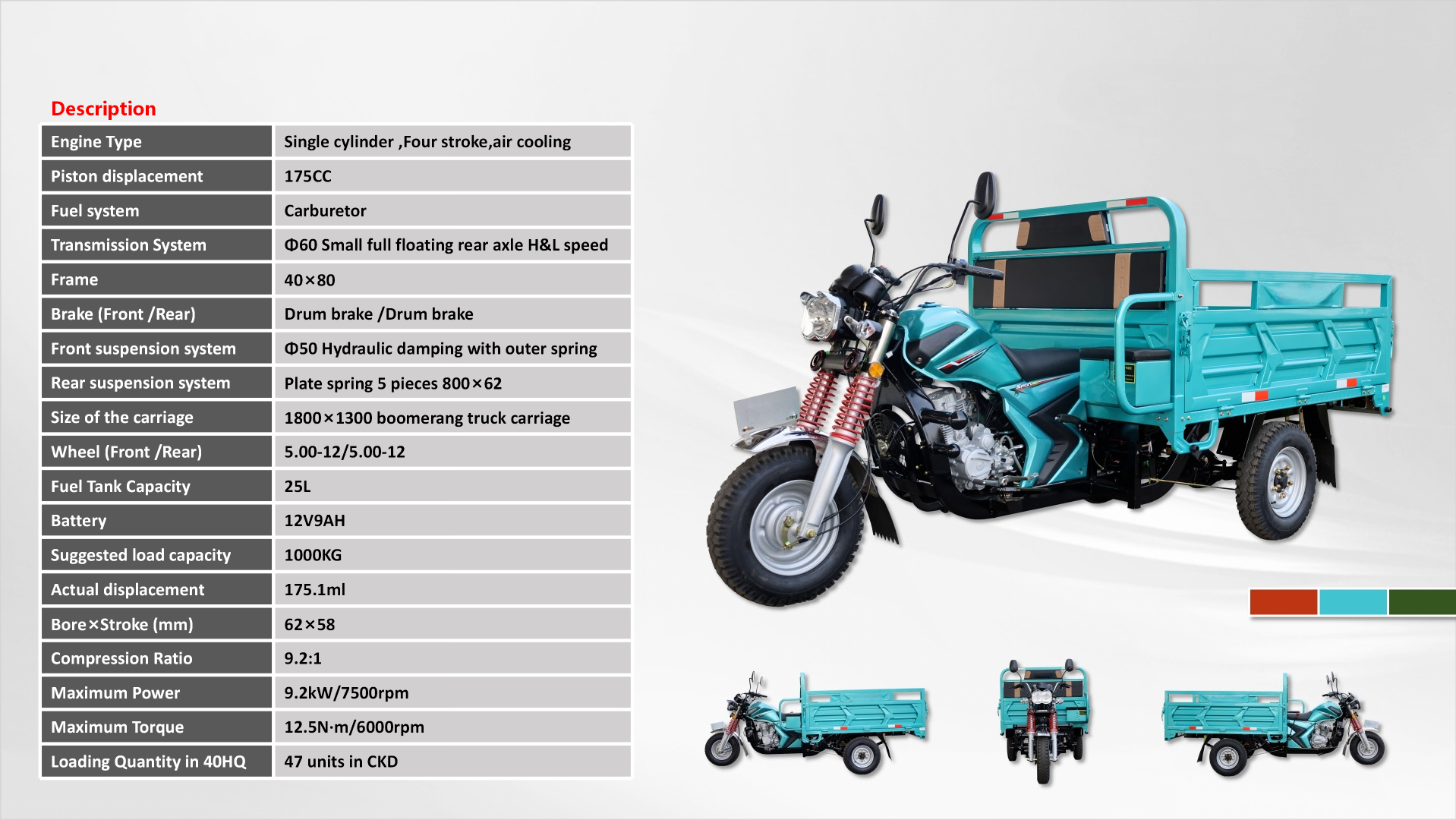

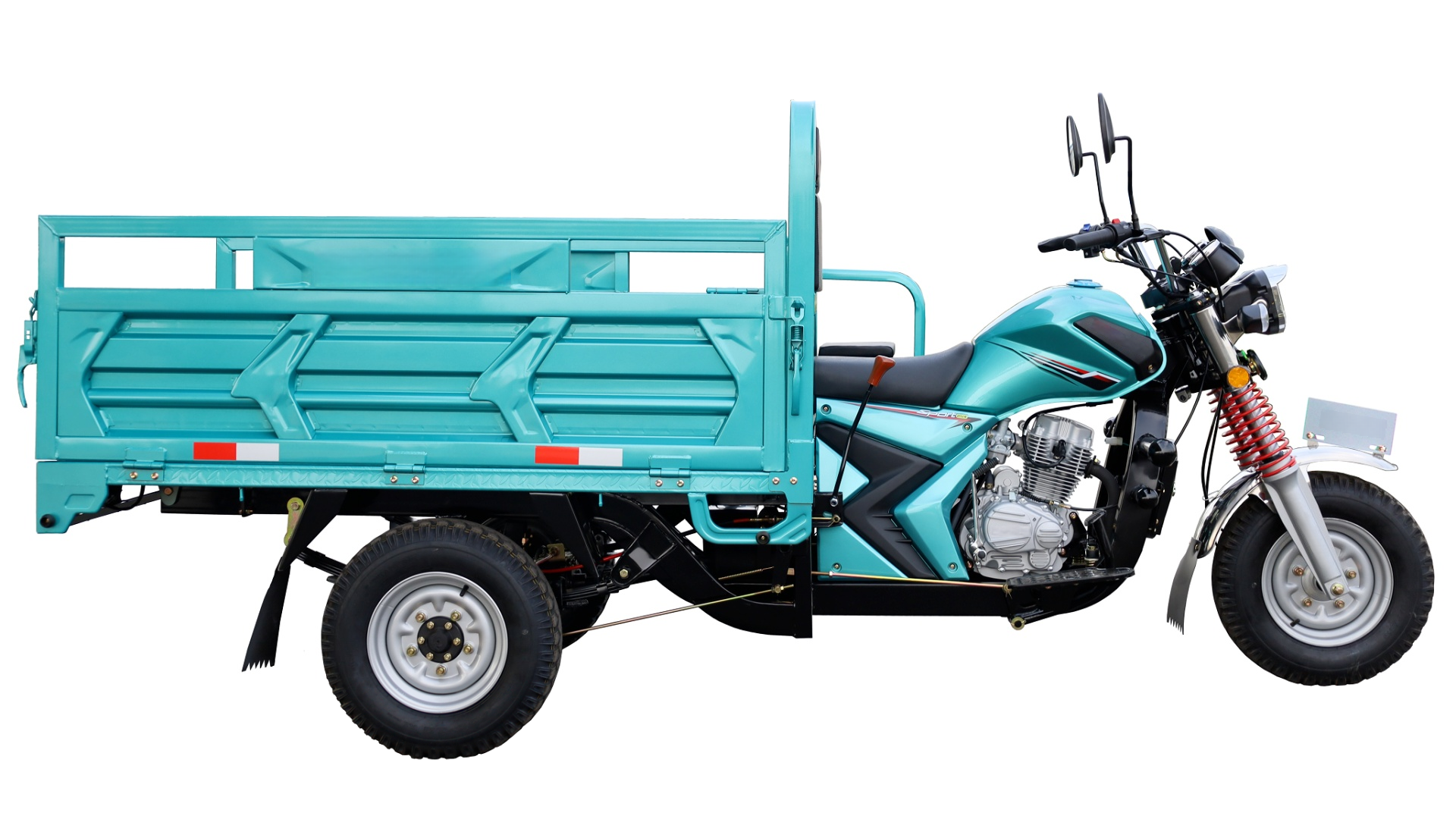

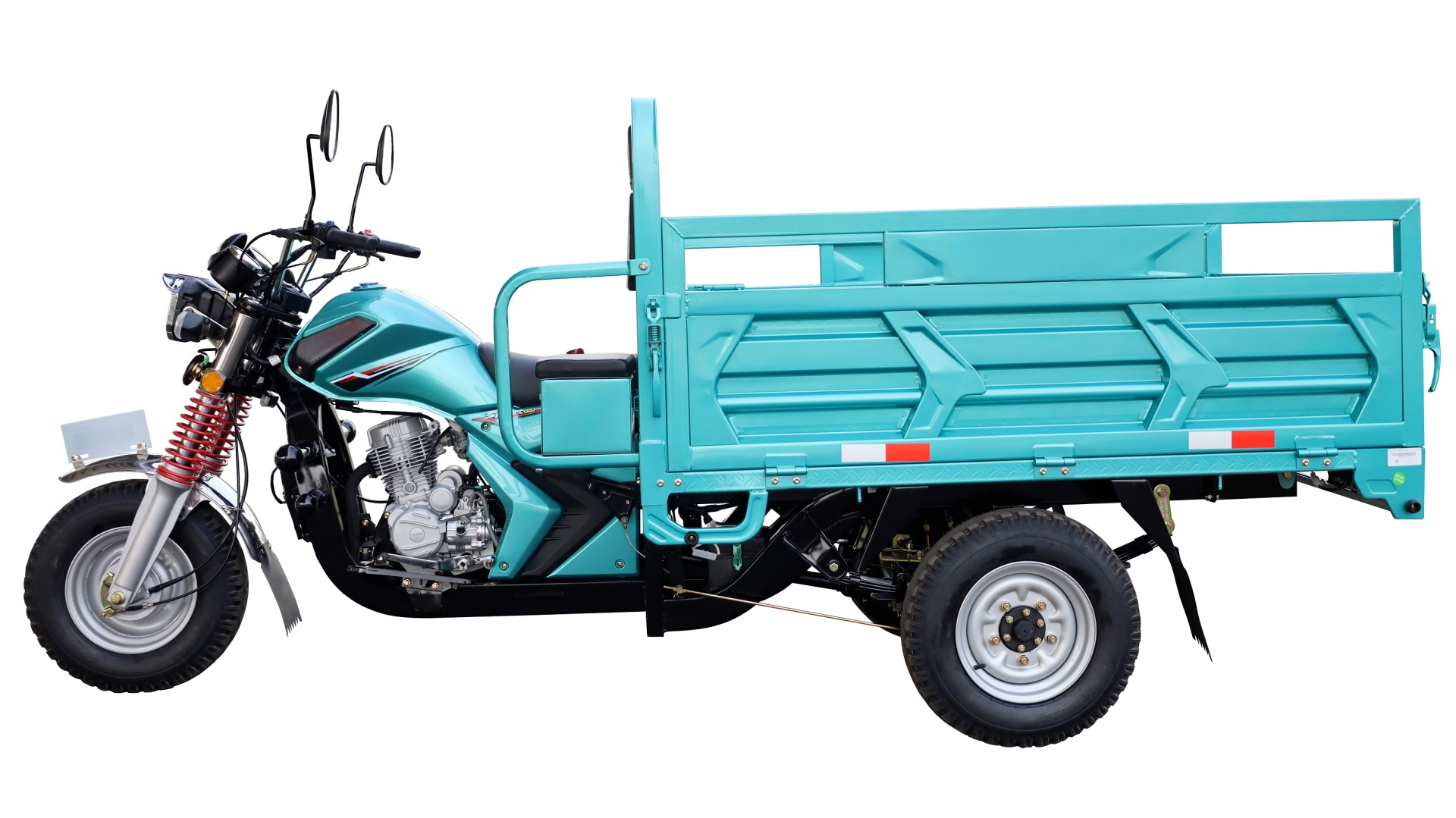

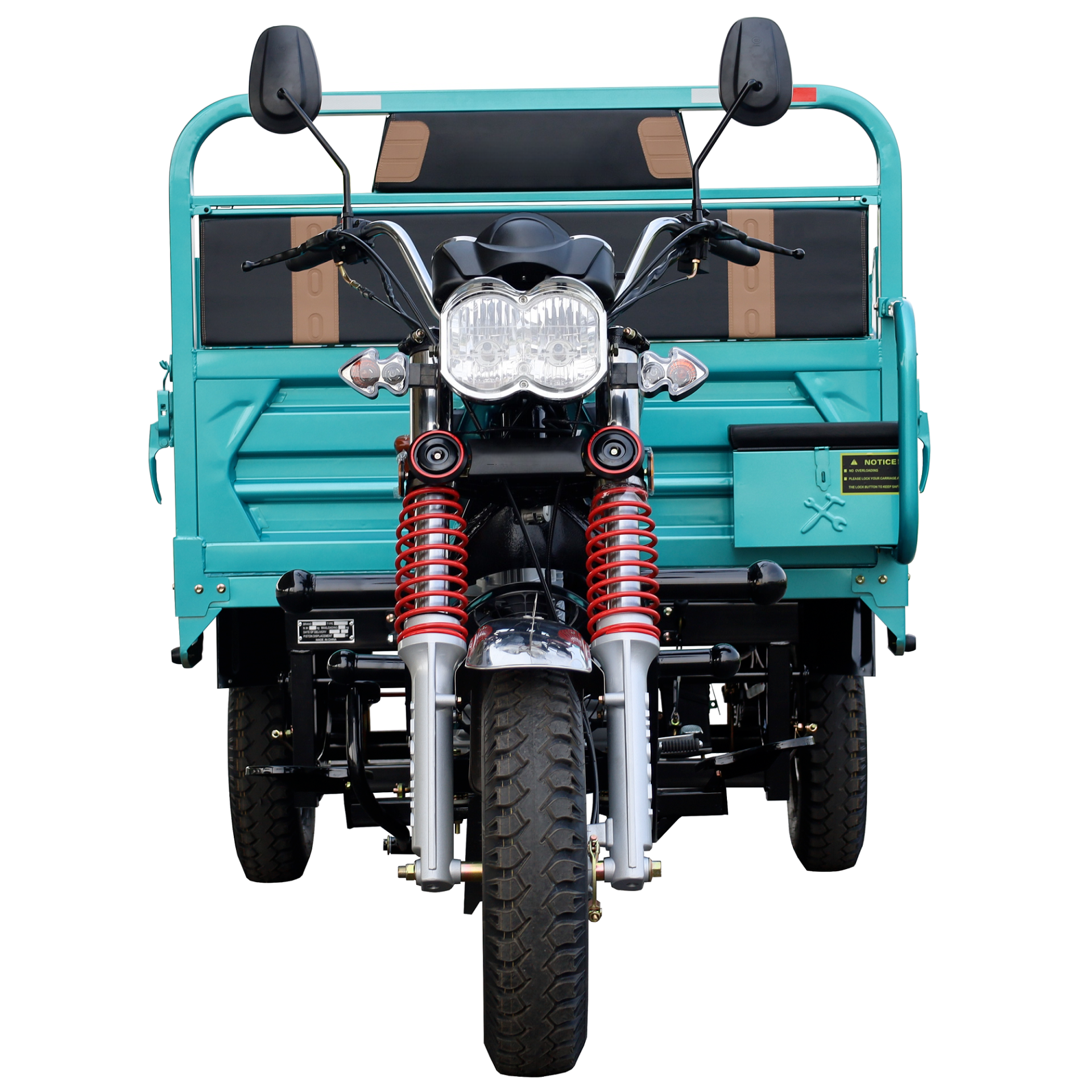

Motor Tricycle: PM175ZH-R1
Powerful Performance: 175CC (optional 210CC) 4-stroke air-cooled engine, 9.2kW max power, full floating rear axle for heavy-duty hauling.
Super Load Capacity: 1000KG rated load, 1800×1300mm large boomerang carriage for maximum cargo space.
Durable Structure: 40×80 heavy-duty frame, Φ50 hydraulic front damping + vertical spring rear shock absorber.

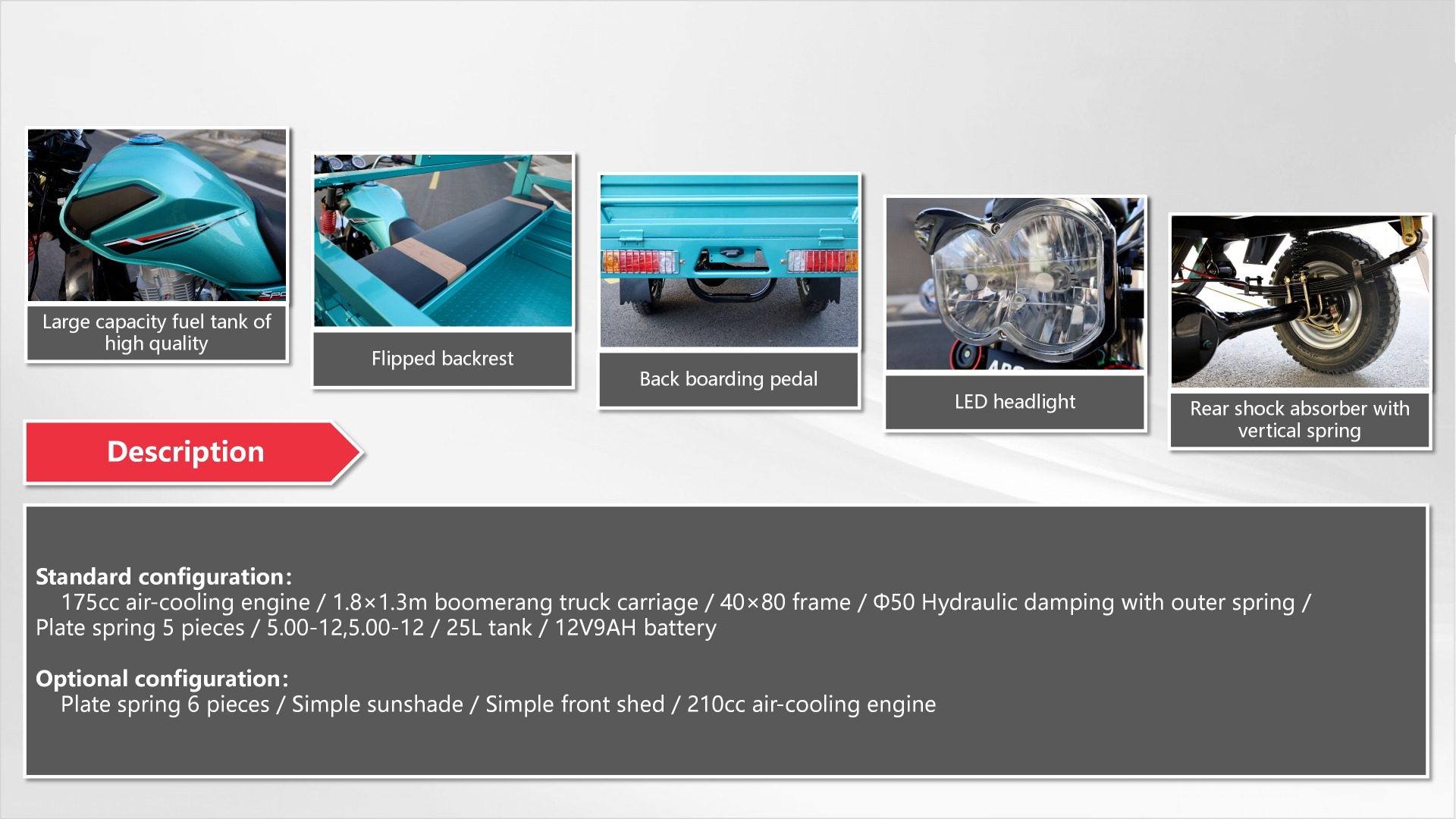

User-Friendly Design: 25L large fuel tank, flipped backrest, LED headlight, back boarding pedal, optional sunshade/front shed.
Safe & Stable: Front/rear drum brakes, 5.00-12 heavy-duty tires for reliable grip on various roads.
Export-Friendly: 47 units CKD per 40HQ container for cost-effective bulk shipping.
